VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision

VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision
VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision

Gambar besar :  VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision

Detail produk:
Tempat asal: CINA
Nama merek: HR
Sertifikasi: CE
Nomor model: VMC640
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: 19500USD/SET
Kemasan rincian: Kemasan kayu lapis
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 100Set/bulan
Kontak

VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision

Deskripsi
Jaminan: 1 tahun Berat: 3000kg
dimensi (l*w*h): 2700*2150*2600 Kondisi: Baru
Jenis: Vertikal Layanan purna jual disediakan: Insinyur tersedia untuk mesin layanan di luar negeri, dukungan online
Voltase: 380V 50HZ, Kebutuhan Pelanggan Kekuatan (w): 5.5kw
Jenis mesin: Cina produsen mesin pusat pusat proses vertikal cnc Poros: Spindel 10000rpm Taiwan
Spindle Taper: BT40 Nama Produk: pusat permesinan vertikal CNC pemrosesan cetakan logam kecil VMC640L
Panduan: X,Y panduan linier Warna: Buatan khusus
Menyoroti:

10000rpm spindle CNC Vertical Machining Center

,

16 ATC tool magazine VMC640 CNC Milling Machine

,

±0.005mm precision Vertical Machining Center

Product Introduction

It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection

mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.

Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.





Specifications VMC640
Work table Area of work table 800×300mm
  Load capacity 400 kg
spindle Motor power 5.5kw
  Distance between the spindle end and the work surface 120-670 mm
  Spindle center to column guide rail 460 mm
  Speed 12000rpm
  Taper of spindle BT40
Distance of travel X-Axis 600 mm
  Y-Axis 400mm
  Z-Axis 450mm
Feed X/Y/Z-axis fast moving 24/24/18mm(linear guide way)
  fast cutting speed mm /min 1-10000 mm/min
precision Positional accuracy ±0.01 mm
  Repeat positional accuracy ±0.005 mm
Tools Tool changer type 16 ATC tool magazine
  Max. tool length 300mm
  Max. Tool diameter Φ80(adjacent tool)/φ150(not adjacent tool)
  Max.tool weight 8kg
  Tool changing time(tool-to-tool) 7sec
Data Air pressure 0.6 Mpa
  Power Supply Voltage(V)/frequency (Hz) 220v three-phase voltage
    Total capacity(KVA) 10
  Weight 3000 kg
  Diamention 2280×2150×2250mm

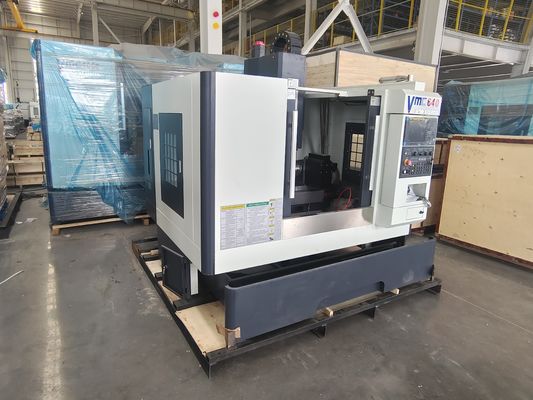

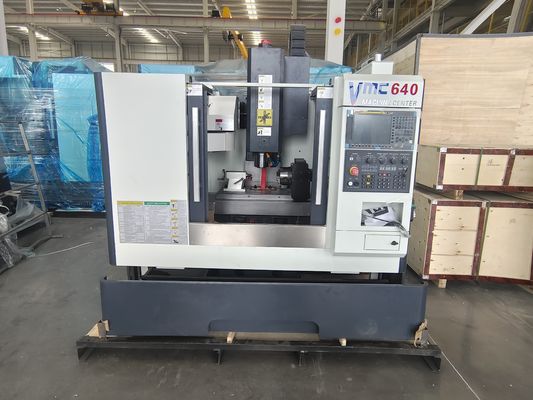

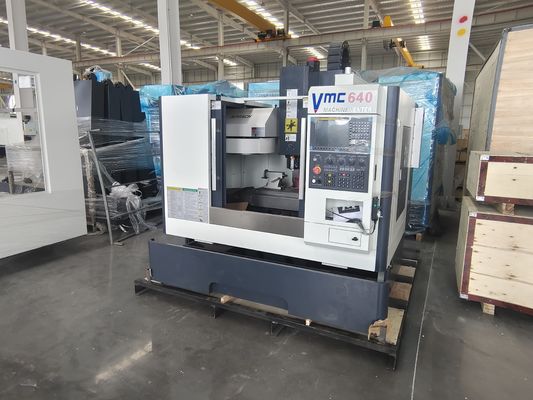

Product images

VMC640 CNC Vertical Machining Center with 10000rpm Spindle 16 ATC Tool Magazine and ±0.005mm Precision 0



Label:

pusat permesinan vertikal kecil,

mesin penggilingan cnc vertikal,

pusat mesin vertikal cnc
