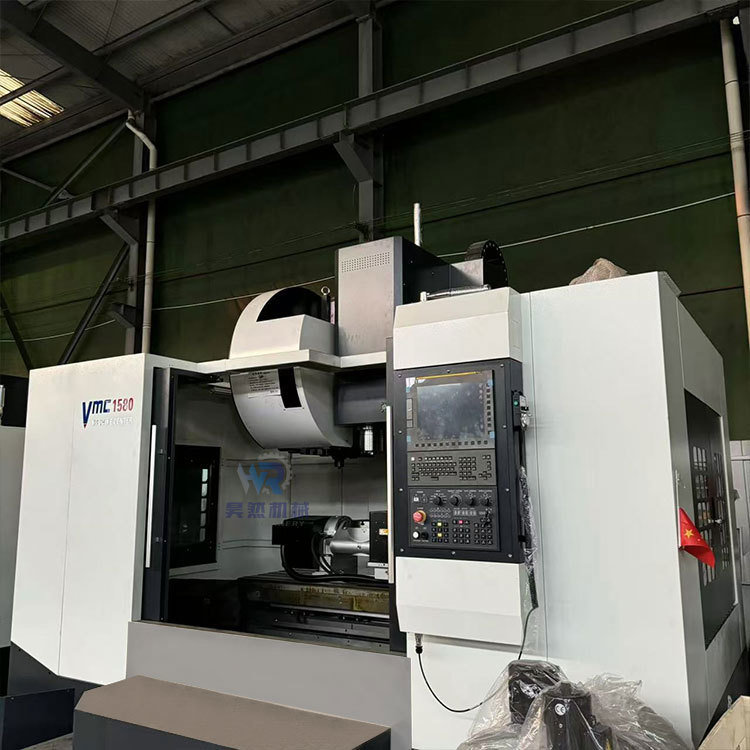

Vmc1580 CNC Milling Machines Machining Centers

Vmc1580 CNC Milling Machines Machining Centers
Vmc1580 CNC Milling Machines Machining Centers
Vmc1580 CNC Milling Machines Machining Centers Vmc1580 CNC Milling Machines Machining Centers Vmc1580 CNC Milling Machines Machining Centers

Gambar besar :  Vmc1580 CNC Milling Machines Machining Centers

Detail produk:
Tempat asal: CINA
Nama merek: HR
Sertifikasi: CE
Nomor model: vmc1580
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: 45000-55000USD
Kemasan rincian: 40 hq
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 50 set/bulan
Kontak

Vmc1580 CNC Milling Machines Machining Centers

Deskripsi
Jaminan: 1 tahun Berat: 13000kg
Kondisi: Baru Jenis: Vertikal
Layanan purna jual disediakan: Insinyur tersedia untuk mesin layanan di luar negeri Voltase: 380V 50Hz
Kekuatan (w): 18,5 kW Jenis mesin: Cina produsen mesin pusat pusat proses vertikal cnc
Poros: Kecepatan dan presisi tinggi Spindle Taper: B50
Nama Produk: presisi luar negeri layanan 3 sumbu cnc harga pusat mesin vertikal Kecepatan spindel: 6000 rpm
Panduan: Panduan Linear Warna: Buatan khusus
Menyoroti:

VMC1580 CNC vertical machining center

,

CNC milling machine with high precision

,

industrial CNC machining center with warranty

Vmc1580 vertical machining centre Vmc1580 vertical machining centre

Vmc1580 CNC Milling Machines Machining Centers 0

Main configuration:



  Specification unit
VMC1580
Table Size 1700*800 mm
Max. Table Load 1500 kg
T-slot No. and size 5-22x150 mm

processing

Scope

 Table Travel (X) 1500 mm
Table Travel (Y) 800 mm
Table Travel (Z) 700 mm
Spindle end face to Work surface distance Max. 840 mm
Min. 170 mm
Distance from Spindle center to Z Axes rail surface 810 mm
Spindle Spindle Taper SK50
Range of Spindle Speed 6000 r/min
Spindle Motor Power 18.5 kW
Move Fast-moving X Axes 24 m/min
Y Axes 24
Z Axes 24
Moving speed 1-10000 mm/min
Tool Magazine Tool Magazine Capacity 24
Min. Time of Tool Change 2.5 s
Positioning Accuracy Accuracy testing standard JISB6336-4:2000/ GB/T18400.4-2010
X/Y/Z Axes 0.008 mm
X/Y/Z Axe Repeatability 0.005 mm
Dimension(L*W*H) 4300*3200*3100 mm
Weight 13000 kg
  Specification unit




Product application



It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection

mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.

Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
