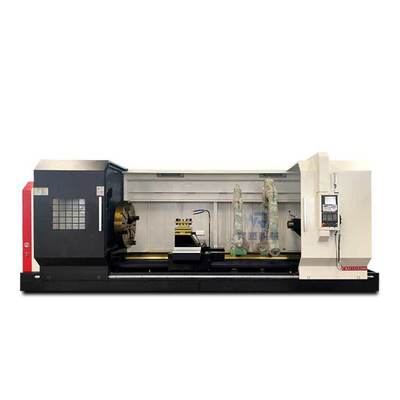

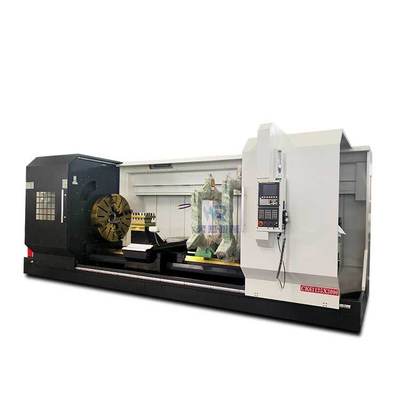

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed
CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed

Gambar besar :  CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed

Detail produk:
Tempat asal: CINA
Nama merek: HR
Sertifikasi: CE
Nomor model: CK61125
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: 35400USD/1 Set
Kemasan rincian: Kemasan bahan standar
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: T/t, l/c
Menyediakan kemampuan: 100 set/bulan
Kontak

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed

Deskripsi
Voltase: 3 Fase 380V 50Hz Nilai otomatis: Otomatis
Kekuatan (w): 4.0/5.5/7.5kw Max. Diameter ayun: 1250mm
Berat: 6500kg CNC atau tidak: CNC
Jenis: Horisontal, PUSAT BALIK Layanan purna jual disediakan: Insinyur tersedia untuk mesin layanan di luar negeri, dukungan online, dukungan teknis video
Jaminan: 1 Tahun, 12 Bulan Bore spindle: 105mm
Kecepatan spindel: 100-2000r/menit Warna: Opsional
Jenis mesin: Mesin Bubut Tempat Tidur Datar Nama Produk: Mesin bubut CNC CK6150 mesin pemotong logam horizontal
Tahun: Baru Sistem Kontrol: SIEMENS GSK FANUC (opsional)
Menyoroti:

1250mm Max Swing Diameter CNC Lathe Machine

,

105mm Spindle Bore CNC Lathe Machine

,

100-2000r/min Spindle Speed CNC Lathe Machine



CNC Lathe use

The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.


CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 0

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 1

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 2


Left Elevation


Front Elevation


Right Elevation




CNC Lathe Features
1. A high strength, widening the crriage, suitablefor heavy cutting
2. Four position electricturret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration:hydraulic chuck

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 3


type

Parameter

Max. swing over bed

Φ1250mm

Max. swing dia. over cross slide

Ф900mm

Max turning diameter

Φ1250mm

Processing length

1000-5000mm

Effective processing length

850/1350/2850/3800/4800

X/Z axis max. stroke

530/1000-5000

X/Z axis min.displacement unit

0.001

Diameter of spindle bore

Ф105mm

Form

Four gears No gearshift

Spindle speed

30-84/53-150/125-350/300-835

Main motor power(frequency conversion)

11KW

Frequency converter

15KW

X/Z axis torque

10/15 N.m

X/Z axis Cutting feed rate

4/6 m/min

type

4 station electric tool post

Section of tool shank

40*40

Repetitive position precision

≤0.004

Dia.of tailstock sleeve

Φ75mm

Travel of tailstock sleeve

200mm

Sleeve taper

MT 6#

Net weight

4500/5000/5500/6000/6500/7000kg

Dimension size(L×W×H)

2800/3700/4200/5200/6200/7200*1820*1780

Power demand (power/current)

20kW/30A


Detailed Images


CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 4

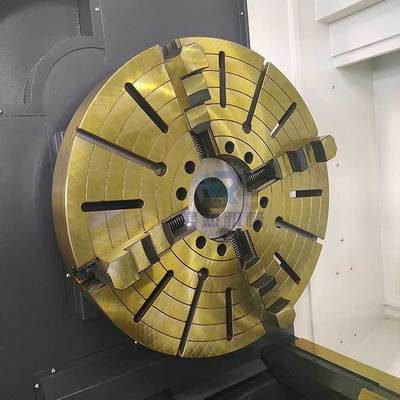

Precision chuck
* Fast clamping product rotation at the same time for processing

* Optional hydraulic chuck

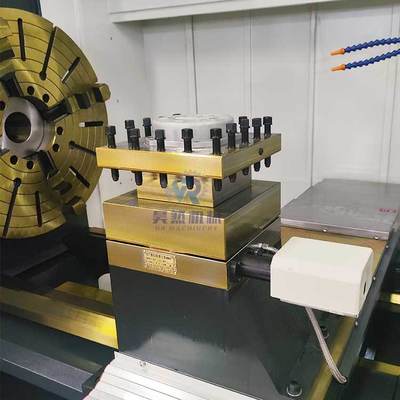

Tool rest tower
* Standard configuration 4 knife position
* Can be selected according to the requirements of 6 knife position, 8 knife position

CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 5


CK61125 CNC Lathe Machine with 1250mm Max Swing Diameter 105mm Spindle Bore and 100-2000r/min Spindle Speed 6

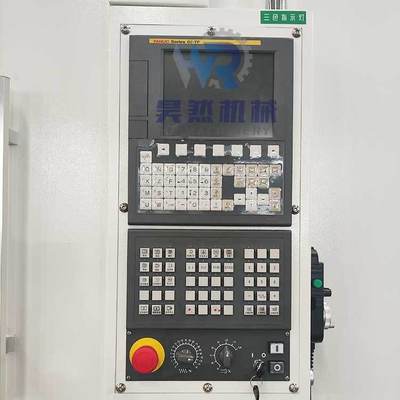

Numerical Control System
* Assembly of wide numerical control system, but also optional other numerical control system
