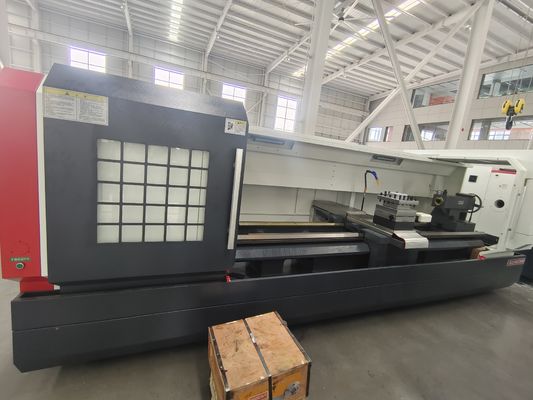

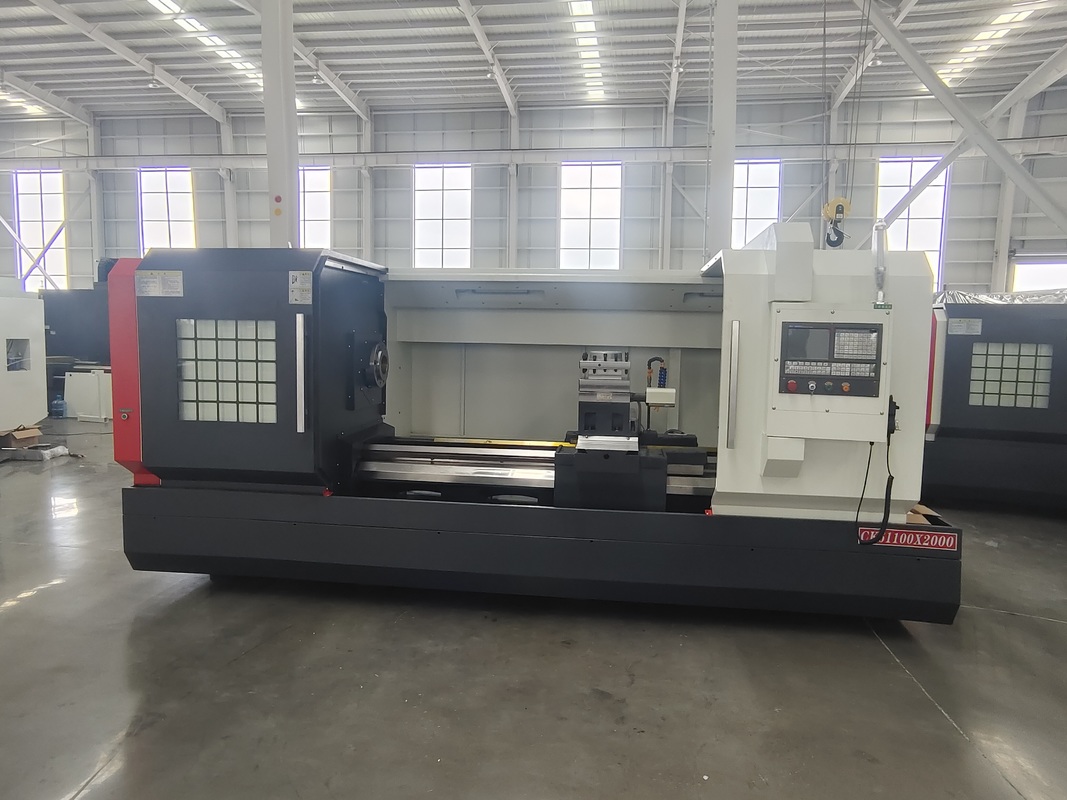

CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System

CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System
CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System
CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System

Gambar besar :  CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System

Detail produk:
Tempat asal: Chian
Nama merek: HR
Sertifikasi: CE
Nomor model: CK61100
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: 19999USD
Kemasan rincian: Kotak kayu lapis
Waktu pengiriman: 30 hari kerja
Syarat-syarat pembayaran: L/c, t/t
Menyediakan kemampuan: 100Set/bulan
Kontak

CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System

Deskripsi
Voltase: 3 Fase 380V 50Hz Nilai otomatis: Otomatis
Kekuatan (w): 11/15kw Kondisi: Baru
Max. Diameter ayun: 1000mm CNC atau tidak: CNC
Jenis: Horisontal, PUSAT BALIK Layanan purna jual disediakan: Insinyur tersedia untuk mesin layanan di luar negeri, dukungan online
Jaminan: 1 tahun Bore spindle: 105mm
Menyoroti:

CNC flat bed lathe with Fanuc control

,

automatic CNC lathe machine

,

Siemens control CNC lathe

Product Description


CNC Lathe use

The machine tool is automatically controlled by the CNC control system to perform various inner holes, outer circles, conical surfaces, arc surfaces, and thread turning. It is especially suitable for rough and fine machining of shafts and disc parts in small and medium batches, with a degree of automation High, simple programming, high precision and other advantages.







CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System 0

CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System 1

CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System 2


Left Elevation


Front Elevation


Right Elevation


CNC Lathe Features
1. A high strength, widening the crriage, suitablefor heavy cutting
2. Four position electricturret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration:hydraulic chuck

CK61100 CNC Flat Bed Lathe Automatic Fanuc Siemens Mitsubishi Control System 3


Max. swing over bed(mm)

Φ1000

Max. swing dia. over cross slide(mm)

Φ630

Max.processing length(mm)

1000/1500/2000/3000

Max.processing diameter(mm)

Φ1000

maximum diameter of bar(mm)

Φ630

chuck

630 3jaw or 800 4 jaw

The spindle terminal structure

D11

Diameter of spindle bore(mm)

Φ105

The taper of spindle front-end

1:20

Spindle speeds series

Four files manually/Hydraulic four files

Spindle speeds(r/min)

30-84/53-150/125-350/300-835

X/Z axis travel(mm)

MM350/(1000/1500/2000/3000)

X/Z axis lead screw diameter × pitch(mm)

φ3208/φ5010

X/Z fast moving(m/min)

4/6

Tool post form

Electric vertical

number of work position

4

Tool bar section (turning/boring)

32/40

Sleeve diameter / stroke(mm)

Φ100/250

Sleeve inside the hole taper

MT6

Sleeve driven form

manual

Tailstock body movement form

manual

main motor(kw)

11

Spindle motor torque(nm)

48

Motor of Z axis X(kw)

1.5/2.3

X/Z nm

10/15

Coolant motor power

125w

power capacity

15KVA

Bed saddle layout

Flat bed

Guide form

Harden guide way(＞ HRC50)

Machine weight

4300/4700/5500/6500kg

length × width × height

( 3400/3900/4400/5400 )/1900/2000 mm
