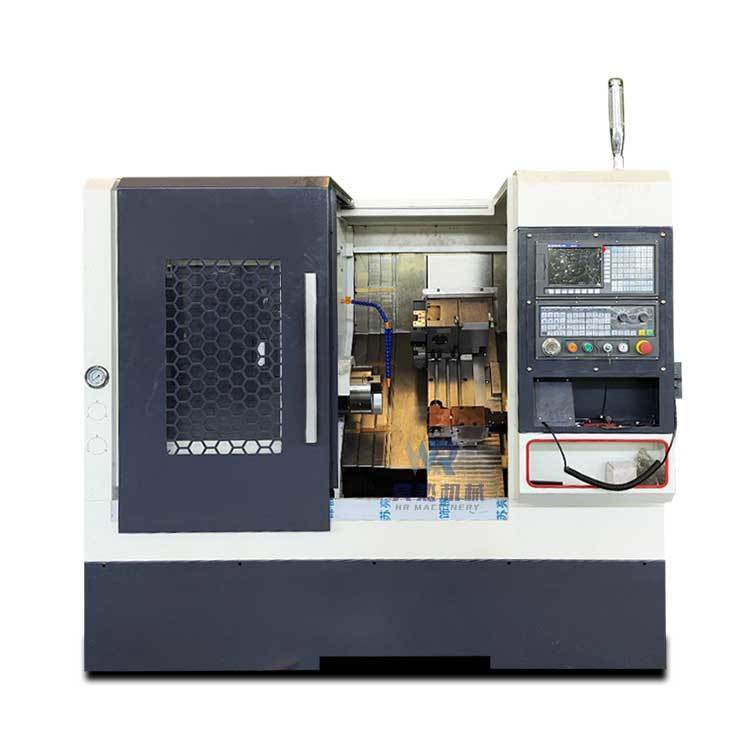

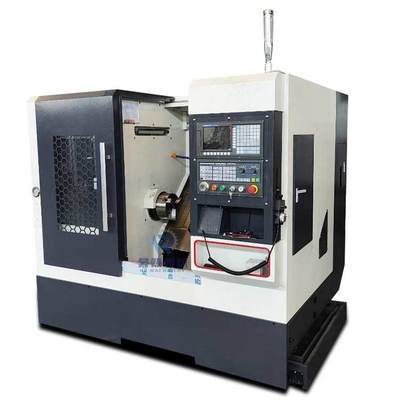

High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine
High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine
High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

Gambar besar :  High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

Detail produk:
Tempat asal: CINA
Nama merek: HR
Sertifikasi: ceiso
Nomor model: TCK40
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1set
Harga: usd12000-15000
Kemasan rincian: paket standar ekspor (kasus kayu lapis)
Waktu pengiriman: 30 hari
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 40set/bulan
Kontak

High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

Deskripsi
Voltase: 380v Nilai otomatis: Otomatis
Kekuatan (w): 5.5/7.5kw Kondisi: Baru
Max. Diameter ayun: 450mm Berat: 1700kg
CNC atau tidak: CNC Jenis: horisontal
Menyoroti:

TCK40 CNC lathe machine

,

horizontal slant bed lathe

,

CNC turning machine with warranty

High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine
Product Introduction
slant bed cnc turning center lathe machine The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention. Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.

High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine 0
model
tCK40
Max swing over bed Dia.(mm)
Φ450
Maximum cutting diameter(mm)
Φ120
Max cutting length(mm)
335
X axis travel(mm)
900
Z axis travel(mm)
335
X, axis feed speed(mm/min)
24000
Z axis feed speed(mm/min)
24000
handwheel(mm)
0.001/0.01/0.1
X, Z feed speed(mm/min)
0~5000
X, Z manual feed speed(mm/min)
0~1260
Xaxis repeated positioning accuracy(mm)
0.005
X axis positioning accuracy(mm)
0.01
Z axis repeated positioning accuracy(mm)
0.006
Z axis positioning accuracy(mm)
0.015
Spindle speed(rpm)
35-3000
Spindle maximum torque(N.m)
35
Spindle nose
A2-5(OptionalA2-6)
Spindle bore Dia(mm)
Φ52
Hydraulic chuck through hole diameter(mm)
Φ40
Chuck
6”(Optional8”)
No.of tool holder
3 tool rack
Tool change time(s)
0.25
Tools size(mm)
20×20
Boring tool size(mm)
Φ25
Main motor(kw)
5.5 (4500rpm)
Main motor torque(N.m)
35
X-axis feed motor power(kw)
1.5
X-axis feed motor torque(N.m)
6
Z-axis feed motor power(kw)
1.5
Z-axis feed motor torque(N.m)
6
coolant capacity(L)
200
Motor type(1HP)(kw)
0.125
Machine weight(kg)
1600
Details Images
High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine 1



Hydraulic chuck Standard with 8inch hydraulic chuck +soft jaws Optional: 10inch hydraulic chuck
High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine 2



fly -cutter ,tool rack
High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine 3
45 Degree Machine structure 1. Special structure more stronger 2. Heavy loading capacity 3.Easy metal chips falling down
High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine 4
CNC System Standard: Siemens cnc system Optional: GSK , FANUC ,Syntec Etc.
